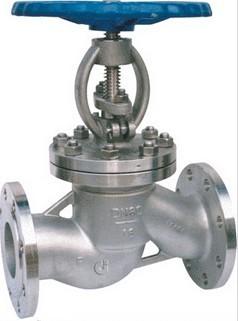

Bolted Bonnet Pneumatic Globe Valve OS & Y Stailness Steel DIN PN16
Description:
DIN Flange Globe valves offer the ultimate in dependavle service for steam, air, gas, oil , oil vapor and high pressure in stallations. All have streight-though ports to assure minimum turbulence, erosion, and resistance to flow. They are available in a wide variety of trims.
1 . Body: Body is cast with heavy sections reinforced at points subjected to the greates stress.
2 . Disc: Disc is plug type.
3 . Stem: The Tee-head disc-stem connection prevents lateral strain on the stem for smooth, easy operation.
4 . Bonnet Gasket: Bonnet gasket provides a positive seal against leakage. PN16 to PN40 valves have a male/Female bonnet joint. A ring type gasket is employed in PN63 to PN100
5 . Operator: Handwheel, Gear Box, Pneumatic, Electric Acutator
Technical Specifications:
- Design & Manufacture standard: DIN3356
- Face to face dimension standard: DIN3202
- Flange standard: DIN2543 to DIN2546
- Test & Inspect: DIN3230
| Material of main Parts | Body | Stainess Steel 304/304L/316/316L |
| Disc | Stainless Steel 304/304L/316/316L |
| Stem | Stainless Steel |
| Seat | HF or STL |
| Backseat Bushing | Stainless Steel |
| Packing | Graphite+SS304/SS316 |
| Bolt /Nut | Stainless Steel |
| Operation | Handwheel, Chain wheel, Gear Box, Pneumatic, Motor,Hydraulic |
| Working Temperature | -196 to 425 Celsius degree |
| Working Medium | Water, Oil, Gas, H2SO, Steam |
Dimmension:
| Size | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
| L | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | 980 | 1100 |
| H | 218 | 258 | 275 | 280 | 330 | 350 | 355 | 400 | 415 | 460 | 510 | 710 | 786 | 925 | 1120 | |
