High Pressure Bonnet Globe Valve Class 2500 Flange Type With Bevel
Description:
Cast Steel flange globe valve are highly efficient for services requiring frequent operation and throttling when pressure drop across the valve is about 20% of inlet pressure. Closer throttling, creating higher pressure drops may cavitation or excessive velocities which could cause high noise levels, vibration and possible damage to the valve or adjacent piping. Globe valve can be equipped with optional operators and are avaliable with a variety of trims to match service requirements.

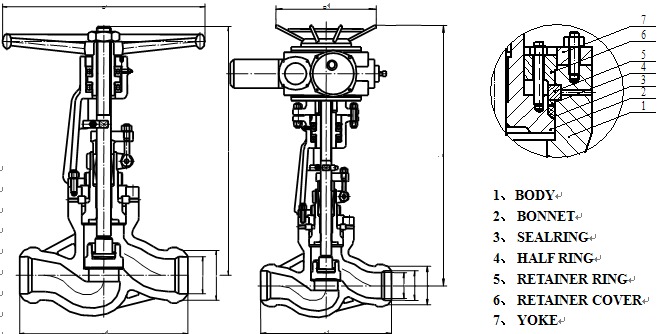

1 . Body: Body is forged .Valves are available in both flanged and butt welding ends. All conform to ANSI specifications.
2 . Bonnet: Bonnet is pressure sealed bonnet.
3 . Stem: Stem has long engagement with yoke bushing for accurate seating.
4. Dsic stem Nut: Disc stem ring connects the disc to the stem, permitting the disc to swivel and aid in securing tight seating for trouble-free service.
5 . Operator: Handwheel, Bevel Gear Box, Pneumatic and Motor Actuator.
Technical Specifications:
- Design & Manufacture standard: API 600, API 6D, BS1873
- Pressure & Temperature standard: ASME B16.34
- Face to face dimension standard: ASME B16.10
- Flange standard: ASME B16.5, ASME B16.47
- Test & Inspect: API 598
Dimmension:
| NPS | L | d | H | H! | W | W1 | Weight(Kg) |
| inch | mm | RF | RTJ | BW | H.W | G.O |
| 2 | 50 | 368 | 371 | 368 | 51 | 480 | _ | 350 | _ | 55 | _ |
| 21/2 | 65 | 419 | 422 | 419 | 64 | 520 | _ | 350 | _ | 68 | _ |
| 3 | 80 | 381 | 384 | 381 | 76 | 564 | 630 | 400 | 310 | 95 | 128 |
| 4 | 100 | 457 | 460 | 457 | 102 | 685 | 720 | 450 | 310 | 160 | 210 |
| 5 | 125 | 559 | 562 | 559 | 127 | 780 | 840 | 550 | 460 | 270 | 325 |
| 6 | 150 | 610 | 613 | 610 | 152 | 950 | 1015 | 650 | 460 | 410 | 480 |
