Pipeline Air Release Valves For Water Systems Bonnet Cast Iron

Name: Pipeline Air Release Valves For Water Systems Bonnet Cast Iron
Brand: TEYI
Price: 1 USD

Brand Name : TEYI

Model Number : CARX

Certification : CE/API/ISO/TS

Place of Origin : China

MOQ : 1-10PCS

Price : negotiation

Payment Terms : L/C at sight, T/T, Westem Union

Supply Ability : 5000PCS per month

Packaging Details : Packed in carton firstly, and then reinforced with wooden case for outer packing

Product Name : Flanged Combination Air Release Valve

Material : Cast Iron

Size : DN15 to DN200

Pressure : PN6 to PN16

Connect End : RF, FF

Medium : Water, Oil. Gas, Steam

Working Temp. : 0 to 180 ℃

Inspection Standard : API 598

Contact Now

Pipeline Air Release Valves For Water Systems Bonnet Cast Iron

Products Description

Air Release Valves function to release air pockets that collect at each high point of all pressured pipeline. Air Release VAlves can open against internal pressure, because the internal lever mechanism multiplies the float force to be greater than the internal pressure. This greater force opens the orifice whenever air pockets collect in the valve. Air Release Valves are essential for pipeline efficiency and water hammer protection.

Main part material

No.	Name	Material
1	Body	Cast Iron
2	Bonnet	Cast Iron
3	Ball	Stainless Steel
4	Yoke	Stainless Steel
5	Yoke	Brass

Pipeline Air Release Valves For Water Systems Bonnet Cast Iron

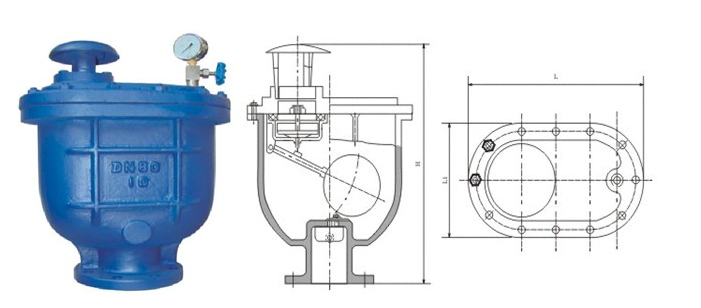

Main Dimensions(mm)

DN	D	D1	D2	L	L1	H	Z-фd
50	160	125	102	325	205	450	4-14
80	196	160	138	365	235	500	4-18
100	215	180	158	385	258	535	8-18
