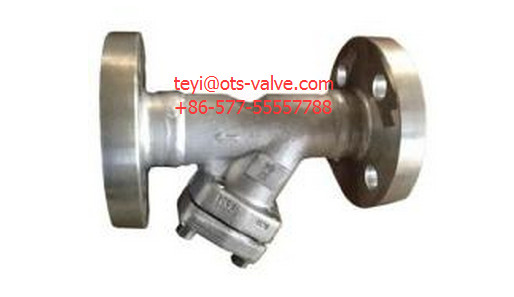

Welded Flange Type Y Strainer Valve Stainless API 602 Class 600

Name: Welded Flange Type Y Strainer Valve Stainless API 602 Class 600
Brand: TEYI
Price: 1 USD

Buy cheap Welded Flange Type Y Strainer Valve Stainless API 602 Class 600 product

Brand Name : TEYI

Model Number : GY41W

Certification : CE/API/ISO/TS

Place of Origin : China

MOQ : 1-10PCS

Price : negotiation

Payment Terms : L/C at sight, T/T, Westem Union

Supply Ability : 5000PCS per month

Delivery Time : 5-7working days after received payment

Packaging Details : Packed in carton firstly, and then reinforced with wooden case for outer packing

Product Name : Forged Steel Strainer

Material : F304, F304L. F316, F316L

Size : 1/2 inch to 2inch

Pressure : Class150LB to 1500LB

Connect End : RF, RTJ

Medium : Water, Oil. Gas, Steam

Working Temp. : -196 to 550 ℃

Inspection Standard : API 602

Contact Now

Welded Flange Type Y Strainer Valve Stainless API 602 Class 600

Description:

1. Design Standard: API602,BS5352

2. Material Pressure-Temperature Standard: ASME B16.34

3. Face to Face Dimension Standard: ASME B16.10

4. Flange dimension standard: ASME B16.5

5. Inspection and Test Standard: API598

Specifications:

Material of main Parts	Body	F304, F304L.F316, F316L
	Screen	SS304/SS316
	Gasket	PTFE
	Cover	F304, F304L.F316, F316L
	Drain plug	F304, F304L.F316, F316L
Operation	Actuator
Working Temperature	-196 to 550℃
Working Medium	Water, Oil

Dimmension:

Welded Flange Type Y Strainer Valve Stainless API 602 Class 600

SIZE	1/2"	3/4"	1"	11/4"	11/2"	2"
L(150LB)	108	118	127	140	165	203
L(300LB)	153	178	203	216	229	267
L(600LB)	165	191	216	229	241	292
H	77	81	93	95	103	118

We are committed to offering porducts that meet a wide range of appications and requirments. We continually improve our product line by introducing new products and enhancing exsiting designs. Providing our customers with the best quality on the market.
