Stainless Steel Extended Body Gate Valve Bolted Bonnet Class 800 SW End

Brand Name : TEYI

Model Number : Z11H

Certification : ISO/CE/API/SGS

Place of Origin : Zhejiang, China

MOQ : 1-20PCS

Price : negotiation

Payment Terms : T/T; L/C,Western Union

Supply Ability : 1000pcs per month

Delivery Time : 7-15 working days after received payment

Packaging Details : Packed in carton firstly, and then reinforced with wooden case for outer packing

Product Name : Extended Bonnet Gate Valve

Design : API602

SW ends dimension : ASME B16.11

Butt weld ends dimension : ASME B16.25

Face to face dimension : ASME B15.10

Inspection and test : API 598

Pressure-temp. rating : ASME B16.34

Material : Forged Steel , A105, F304, F347,F321

Contact Now

Stainless Steel Extended Body Gate Valve Bolted Bonnet Class 800 SW End





Product Description



Forged Steel Threaded End Gate Valves: API 602 Design, Bolted or Weled Bonnet, Socket Welded and Threaded Ends, 1/2 - 2 Inch, Pressure Rating Class 150 - 2500 LB or as customer required.



Design Features:



  1. Bolted bonnet or Welded bonnet
  2. Wedge type: Solid wedge
  3. Back seat design
  4. Stem is integrally forged and connected with wedge by T-joint
  5. Packing is flexible graphite or other materials according to clients requirements, and a spring-loaded mechanism can be provided as per special requirements
  6. Outside screw and yoke(OS&Y)
  7. Extended Bonnet dimension can be made as requirement.

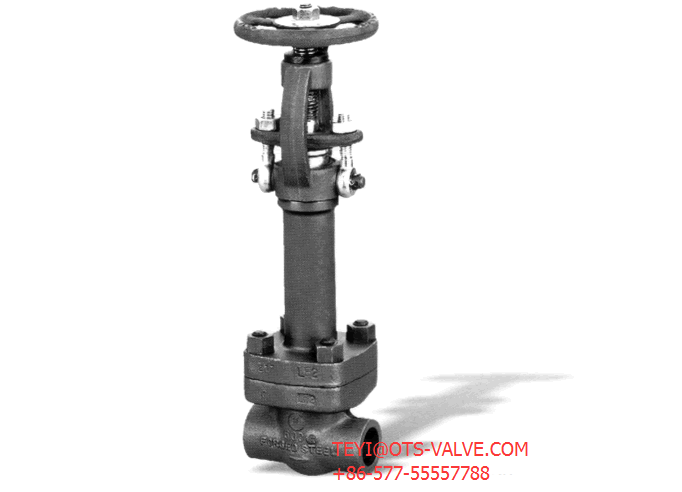

Stainless Steel Extended Body Gate Valve Bolted Bonnet Class 800 SW End      Stainless Steel Extended Body Gate Valve Bolted Bonnet Class 800 SW End



Material List

Item Part Name Standard Low Temperature Stainless Steel
1 Body A105 A350 LF2 A182 F316
2 Seat A105 A350 LF2 A182 F316
3 Wedge A105 A350 LF2 A182 F316
4 Stem A182 F6 A182 F304 A182 F316
5  Gasket SS304/SS316+Graphite/Soft carbon steel/SS304/SS316 Metal Ring
6 Bonnet A105 A350 LF2 A182 F316
7 Bolt A193 B7/B7M A320 L7/L7M A193 B8M
8 Stem Packing Graphite/PTFE
9 Gland A276 410 A276 410 A276 316
10 Gland Flange A105 A350 LF2 A182 F316
11 Gland Nut A194 2H/2HM A194 7/7M A194 8
12 Eyebolt A193 B7/B7M A320 L7/L7M A193 B8
13 Stem Nut A276 420/Cu-Alloy
14 Handwheel Steel/Ductile Iron



Standards:

Design And Manufacture API 602(BS 5352)
Design And Manufacture ASME B16.10 Or Manufacturer's specification
Flange Ends Dimensions ASME B16.5
BW Ends Dimensions ASME B16.25
Socket Weld Ends Dimensions ASME B16.11
Threaded Ends Dimensions ASME B1.20.1
Pressure-Temperature Ratings ASME B16.34
Normal Pressure

Class 800-1500
Normal Diameter NPS1/2"-2"



Dimension:

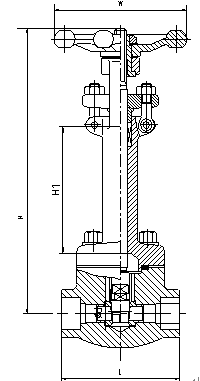

Stainless Steel Extended Body Gate Valve Bolted Bonnet Class 800 SW EndStainless Steel Extended Body Gate Valve Bolted Bonnet Class 800 SW End

NPS L H(-196℃) H(-46℃) W H1 dmin b
1/2" 80 291 255 100 As requirement 9 5
3/4" 92 293 258 100 As requirement 12 6.5
1" 111 340 290 125 As requirement 17 8
11/4" 120 400 365 160 As requirement 28 10
11/2" 140 450 395 180 As requirement 36 12



Competitive Advantages:

1. Our products is guaranteed within 18 months after delivery.
2. We offer free sample if interest before orders.
3. Technology renovation, process improvement, structure optimization and quality improvement.
4. Excellent after-sales service system, providing timely and optimal service, which help you to win the market.
5. Convenient shipping sea port, and standard exporting carton boxes & plywood cases.
6. 100% inspection & testing before delivery.
7. Third party inspection on customer requirement.


Product Tags:

outside screw and yoke valve



solid wedge valve


Buy cheap Stainless Steel Extended Body Gate Valve Bolted Bonnet Class 800 SW End product
