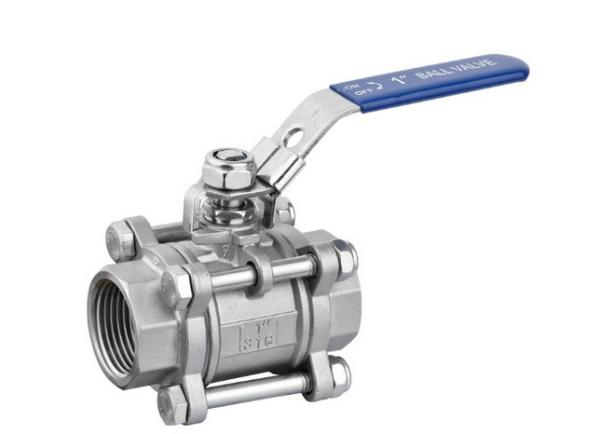

3 Piece Locking Stainless Steel Ball Valves , Full Bore 1000 WOG Ball Valve
Product Description:
- Size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"
- Material: 201/304/316/304L/316L/WCB/CF8/CF8M/CF3/CF3M
- Seat Material: PTFE, RPTFE (15% Glass Fiber), RPTFE (25% Carbon Fiber), PPL etc.
- Pressure: 1000WOG/1000PSI, 1.6-6.4Mpa
- Medium Temp.: -20° C~+180° C
- Ambient Temp.: -20° C~+60° C
- Availably Connection: NPT, BSP, BSPT, DIN259/2999, SW, BW, Clamp, Flanged
- Port: Full Port, Reduced Port
- Handle: Lever Handle, Locking Device Handle Upon Request.
- ISO-5211 Mounting Pad for Actuator (option)
- Operation: Manual, Pneumatic, Electric
- Suitable Medium: Water, Oil, Air and Some Corrosive Liquid
- Design Standard: ASME B16.34
- Inspection and Testing: API 598
Features:
- Blow-out Proof Stem
- Investment Casting Body
- Pressure Balance Hole in Ball Slot
- Anti-Static Device Upon Request
- Various Connection End Standard Available
- Locking Device Available
- ISO-5211 Mounting Pad for Actuator Available

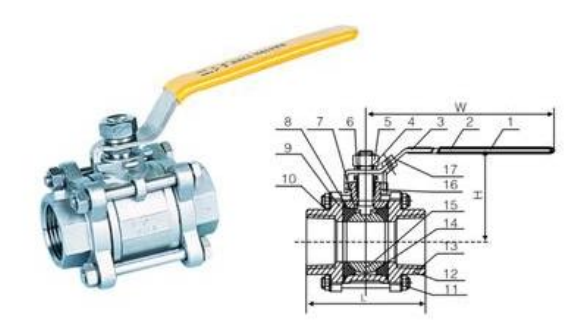

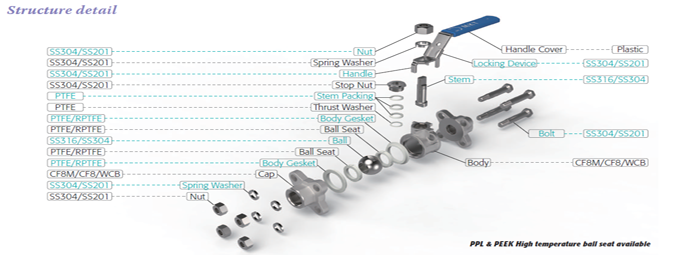

Main Parts Materials
| Item | Part Name | Material |
| 1 | Body | CF8/CF8M/WCB |
| 2 | Ball | SS304/316 |
| 3 | End Cap | CF8/CF8M |
| 4 | Bolting | A193-B8 |
| 5 | Ball Seat | PTFE |
| 6 | Packing | PTFE |
| 7 | Stem | SS316/304 |
| 8 | Gland | SS304 |
| 9 | Handle | SS304 |
| 10 | Nut | A193-B8 |
Advantage:
1, We offer the non-standard valves, according to customer requirements
2, If you want, you can have your own logo on the products
3, Exported to all over of the world
4, We can promise the quality, passed the API,CE,SGS and ISO certification
Choose me, do not hesitate:
1, Design team: We have the professional design people, as u choose, Customer's sample is always welcomed
2, Professional factory: We are manufacturer, specializing in manufacturing valves for many years, competitive price with good quality, the deadline usually is 30-45 days
3, Sample: We can give out sample in 3 days, but the shipment charge usually paid by your side, the fee of it will be rebound when we have formal order.
4, Rapid response to your needs: We will be answer within 24 hours, Welcome to contact with us if you have any problems, We are looking forward to cooperating with you.
